ROTARYTORQUESENSOR.COM / CONTACTLESS MEASUREMENTGEARBOX EFFICIENCY AND LOSS / ENGINEERING CONFIGURATION
Specify two torque-and-speed measurement chains around the reducer. A small difference between two powers requires a useful loss uncertainty, not only a high headline torque accuracy.
The application context is prefilled below. Add your actual duty and project details; the quoted drawing and evidence define the accepted configuration.
MEASUREMENT BOUNDARY / CHANNEL ACCEPTANCE
| Boundary / channel | Required measurements | Result or calculation | Review before comparison |
|---|---|---|---|
| Input shaft | Tin + nin | Pin = Tin × nin / 9549.2966 kW | Choose the input range, maximum speed and direction independently. |
| Output shaft | Tout + nout | Pout = Tout × nout / 9549.2966 kW | Output torque may be larger while speed is lower. |
| Common comparison | Time-aligned power windows | Loss = Pin − Pout; η = Pout / Pin | Declare positive power flow and a nonzero input-power interval. |
| Test state | Oil/bearing temperature, gear state and duty | Comparable loss points | Warm-up, lubrication and measurement locations belong to the test procedure. |
These are review requirements, not released instrument ratings. Use the actual channel definitions and sign convention agreed for your laboratory.
Send both continuous/peak torque and maximum RPM values, not a single gearbox rating. Review each shaft connection and the load path. A common output interface is convenient but does not make both mechanical sensors interchangeable.
Review the two shaft measurement chains ↗Show support bearings, couplings, intermediate stages and seals relative to both sensors. Define which parasitic losses are included. For a flange or a short coupling-integrated assembly, approved support and axial-space drawings still govern the installation.
Review support and coupling locations ↗Request the complete uncertainty of both measured powers and their correlation/timing assumptions. A precise-looking efficiency percentage can conceal a poorly resolved small loss. Resolve temperature drift, zero behavior and the actual working ranges in the acceptance plan.
Review range-specific calibration evidence ↗ORIGINAL HYPOTHETICAL CALCULATION / NOT MEASURED DATA
Assume steady positive power flow: input 20 Nm at 3000 RPM, output 98 Nm at 600 RPM. The illustrative reducer changes speed by 5:1; efficiency comes from power, not torque ratio alone.
6.2832 kWinput mechanical power
6.1575 kWoutput mechanical power
0.1257 kWcalculated loss · 98% efficiency
If each power reading has an assumed absolute error bound of ±0.05 kW, a simple worst-case loss bound is ±0.10 kW—about 80% of the calculated 0.126 kW loss. These assumed bounds are not calibration data or a statistical expanded uncertainty. A formal budget must address correlation, timing and the actual sensor/DAQ conditions.
Request an input/output measurement-chain review ↗DUTY / DRAWING / CALIBRATION / ACQUISITION
Blank planning aid only. No test readings, certification, supplier approval or acceptance grade are supplied in this worksheet.
Carry this application into a quote / CAD request ↗Input torque alone does not provide output mechanical power. Define both measured powers or a separately validated alternative method. A reducer changes speed as well as torque.
Possibly, but it must follow the actual input/output load and speed. Choose each range and mechanical interface independently, then verify the complete uncertainty at the working points.
Loss is a difference. The absolute uncertainties of both readings can be large relative to that small difference. Correlation and synchronization also matter; the simple worst-case example is not a substitute for a formal uncertainty budget.
HBK T40B: capacity-specific technical specification ↗
A primary example of variant-specific sensor specifications to review. It does not establish MT-RTR ratings, uncertainty or measured loss.
Kistler: direct torque measurement methods ↗
Direct rotating torque measurement for drive/transmission power and friction work; examples on this page are original planning arithmetic.
Method reviewed . The diagrams, examples and worksheets are original planning aids. Actual drawings, range/speed qualification and genuine calibration/EMC reports remain configuration-specific supplier inputs.
APPLICATION-SPECIFIC MEASUREMENT BOUNDARIES
Review peak/low-load ranges and synchronized mechanical/electrical power.
Open ev motor dynamometers review ↗Separate pump-shaft input from hydraulic output and upstream electrical losses.
Open rotodynamic pump efficiency review ↗INTERACTIVE DYNO POWER PLANNING
P[kW] = T[Nm] × n[RPM] / 9549.2966. Mechanical hp uses 745.6999 W/hp; it is not metric PS. Signed inputs follow your shaft convention; capacity uses the magnitude.
The multiplier is your preliminary sizing allowance. It does not establish dynamic overload, fatigue or shaft-train safety limits. Those require the selected sensor and coupling data.

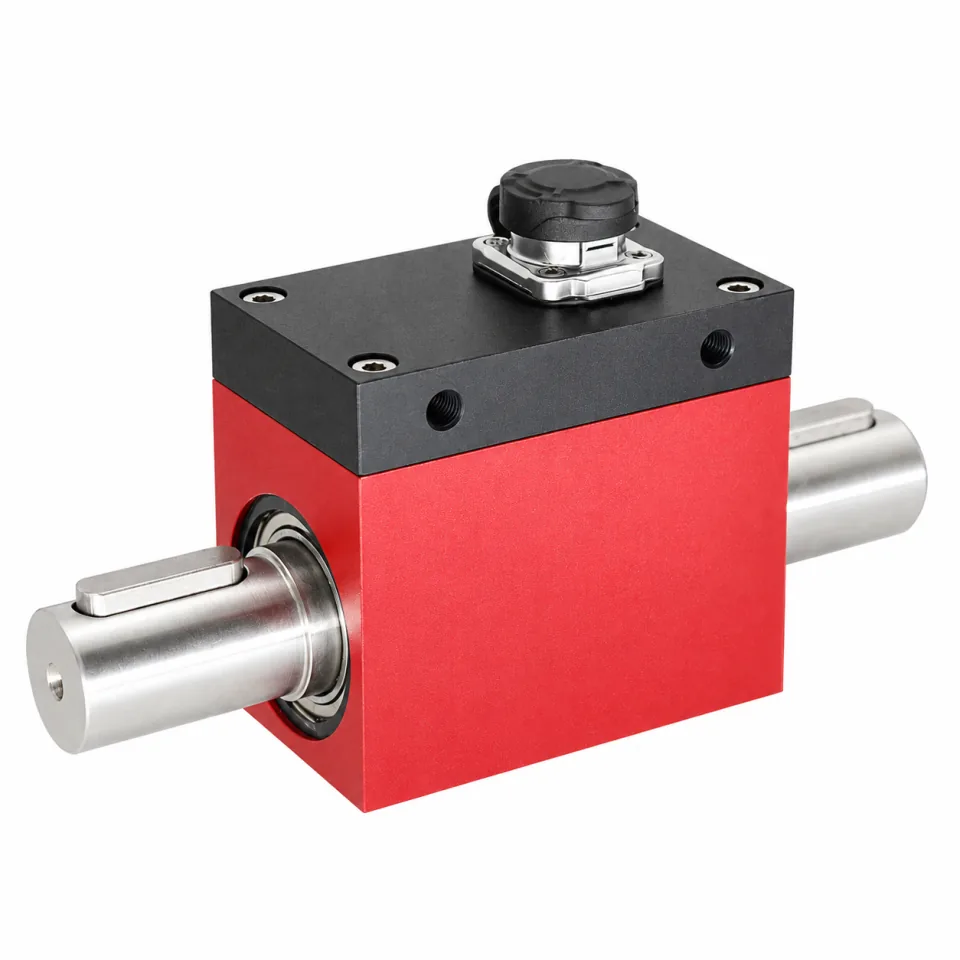

NIST horsepower conversion reference ↗Candidate families below require configuration-specific speed and load approval.
